Description

Hardware specifications

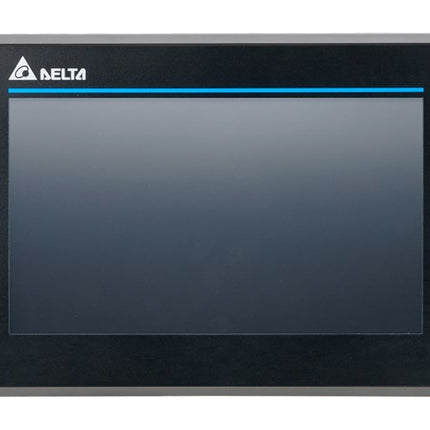

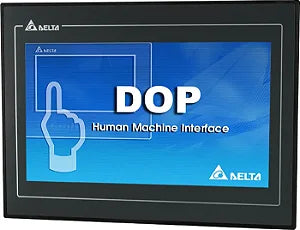

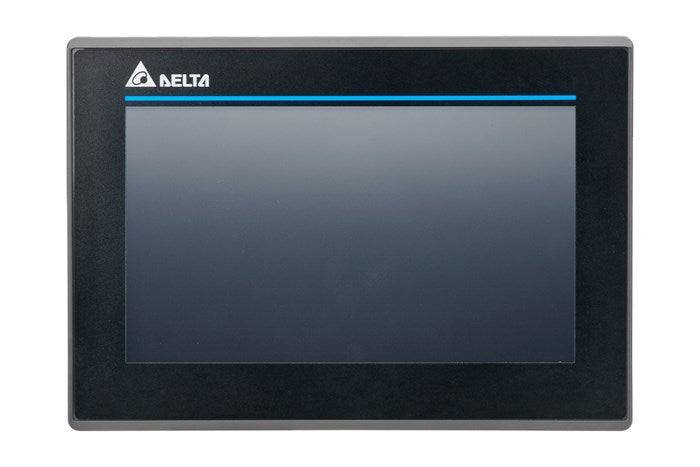

Model		DOP-107L1-01
Display	Panel type	7" TFT LCD ((24 bits)
	Resolution	1024x600 pixels
	Backlight	LED back light (half-life under room temperature 25°C > 20000 hours)*1
	Display range	154.21 X 85.92 mm
	Brightness	400 cd / m2 (Typ.)
CPU		ARM Cortex-A7 Dual Core 1.2GHz
Flash ROM		256Mbytes
RAM		256Mbytes

Touchscreen		4-wire resistive touchscreen
Buzzer		Multi-tone frequency (2 - 4 kHz) / 80 dB
Network interface		1 port, 10/100 Mbps auto-detection (with built-in isolated power circuit)*2 No support PoE(Power over Ethernet)
USB Host		1 Port USB Ver 2.0
USB Slave		N/A
SD		N/A
Serial communication port	COM1	RS-232 (supports flow control)/RS485*2
	COM2	RS-422 / RS-485*2
	COM3	N/A
Auxiliaryfunctionkey		N/A
Calendar		Built-in

Coolingmethod		Natural cooling
Approvals		CE
Panel waterproof level		IP66 (indoor use only)
Operation voltage*2		DC +24V (-15% to +20%) (use an isolated power supply)
Leakagecurrent		500 VAC for 1 minute (between DC24V terminal and FG terminal)
Power consumption*3		10.8 W (Max) *3
Backup battery		3V lithium battery CR2032 x 1
Backup battery life		About 3 years or more at 25°C (77°F) (subject to operation temperature and condition)
Operation temperature		0°C to 50°C (32°F to 122°F)
Storage temperature		-20°C to +60°C (-4°F to 140°F)

Operating environment		10% to 90% RH [0 to 40°C (32°F to 104°F)], 10% to 55% RH [41 to 50°C (105.8°F to 122°F)], pollution degree: 2
Vibration resistance		Conforms to IEC61131-2: continuous vibration 5 Hz - 8.3 Hz with amplitude 3.5 mm; 8.3 Hz - 150 Hz 1G
Shock resistance		Conforms to IEC60068-2-27: 11 ms, 15 G Peak, in X, Y, Z directions each for 6 times
Dimensions (W) x (H) x (D) mm		208.7 x 154.7 x 40.8
Mounting dimensions (W) x (H) mm		196.9 x 142.9
Weight		Approx. 536g



Especificações

• Weight: 200gr
• Usage: Indoor & outdoor
